Installation and Update

Installation​

ANSCENTER Portal is a one-stop shop for managing your own software licenses and download latest software version.

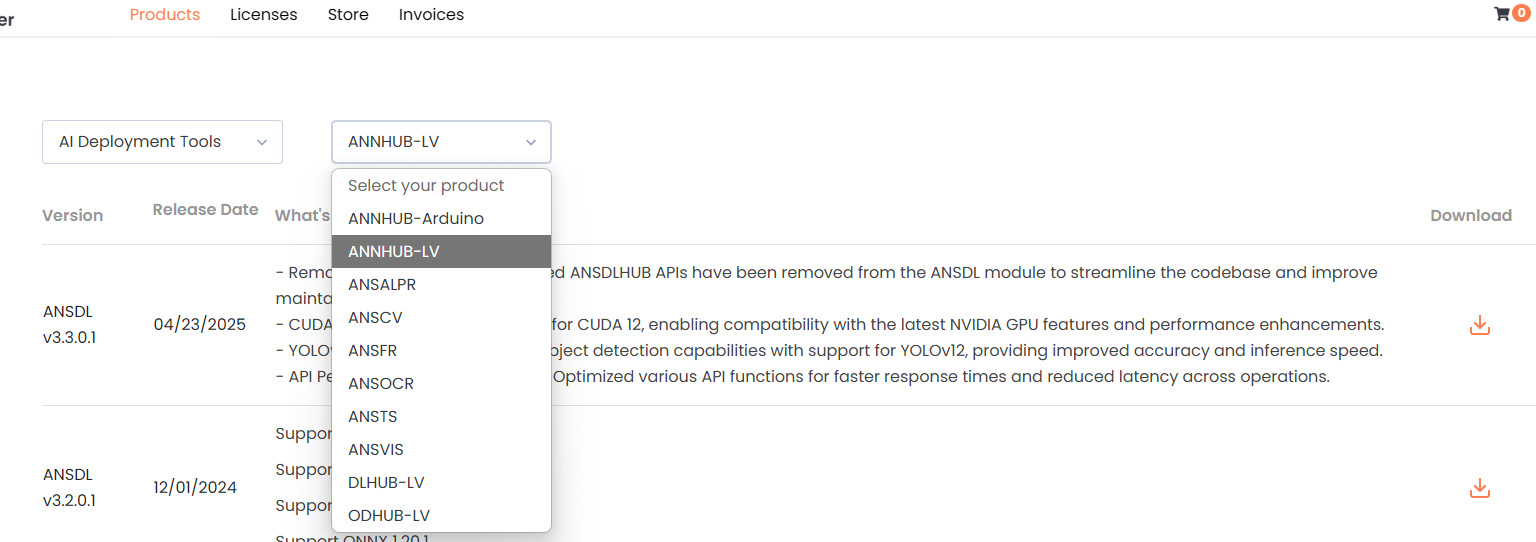

  1. Navigate to Product> AI Deployment Tools and select the corresponding ANSDL function (e.g. ANNHUB-LV)
info

Except DLHUB-LV, all other ANSDL function share the same installer. Therefore, even if you need to use multiple functions, you only need to install ANSDL one time.

  1. Download the latest ANSDL installer version. The download will typically include ANS Runtime Engine file and .vip file

  1. Install the Runtime Engine
  2. Install the .vip file with VIPM

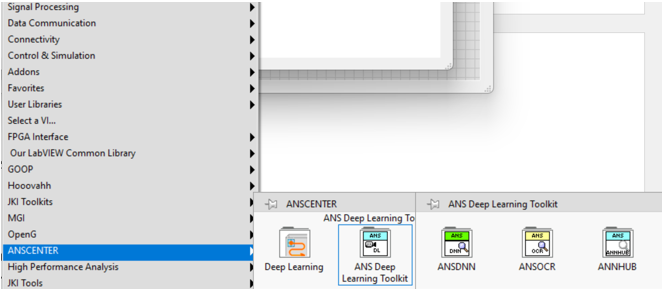

After installation is completed, the ANSDL Functions Palette can be found in the ANSCENTER category.

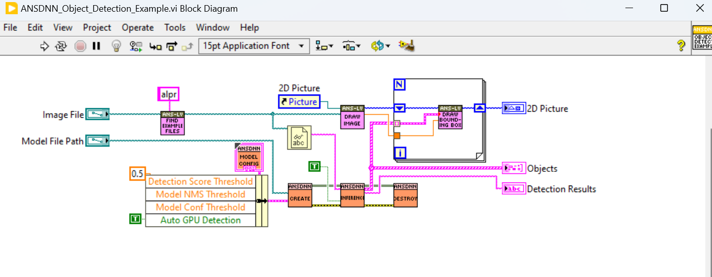

Examples can be found in the NI Example Finder UI. You can replicate these examples for your custom projects

Activate ANSDL​

info

To activate each ANSDL function, please refer to ANS License Manager for instruction
